Features: all stainless steel, waterproof, oil proof, dust proof

◎Frequency response: 20 ~ 300Hz (-3db)

◎Sensitivity: 20.0mv / mms-1, ± 5%

(Measured at 80 Hz, at a velocity of 10 mm / s)

◎Amplitude Linearity: <3%

◎Horizontal sensitivity ratio: <5%

◎Maximum measurable displacement: 1mm (single peak)

◎Working direction: 0 ° below the sensor mounting surface

8H (horizontal type)      8V (vertical type)

◎Output resistance: ≤400Ω

◎Insulation resistance:> 2MΩ

◎Output wiring: floating output. When the sensor base by an impact force,

1 # core output is (+), 2 # output is (-).

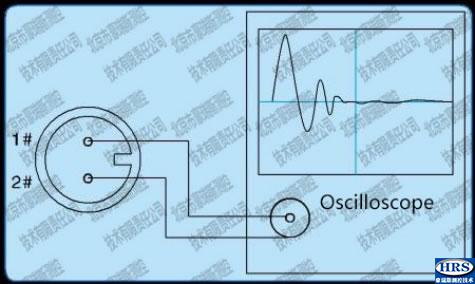

Access oscilloscope, 1 # core, 2 # ground, waveform like this:

◎Weight: about 200g

◎installation

1）Fix with an M8 double head bolt at the center hole of the base

2）Fixed (used for field testing) with quick unloaded magnetic suction seat

◎Order model：

MLV-8H (horizontal)     MLV-8V (vertical)

◎Use temperature range：

Standard type：－30～120℃

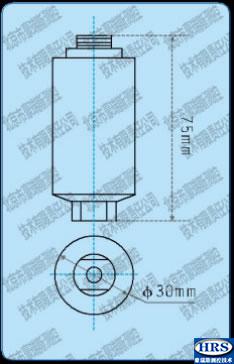

◎Overall dimensions: Ф30 × 75mm
